Finding the best PCB design kits can be challenging with so many options available, each offering different features and levels of complexity. The 82 Piece Double Sided PCB Board Kit stands out as a versatile all-around choice, ideal for hobbyists and educators. For those just starting out, the PCB Design with EasyEDA guide provides an accessible introduction to designing and ordering custom boards. Meanwhile, the ELEGOO 32 Pcs Double Sided PCB Board Prototype Kit offers a straightforward soldering experience for DIY enthusiasts. As you explore these options, consider factors like size flexibility, ease of use, and project scope, which influence the best fit for your needs. Continue reading for a detailed breakdown of each kit’s strengths and tradeoffs.
Complete the kit
Key Takeaways
- The most versatile kits include a variety of sizes and connectors, supporting both small and large projects.
- Beginner-friendly options tend to focus on ease of assembly and clear instructions, often sacrificing some customization potential.
- Higher-piece-count kits provide more flexibility but can be overwhelming for newcomers and often come with a higher price tag.
- Quality of materials and build precision vary, impacting durability and performance in real-world applications.
- Compatibility with popular microcontrollers like Arduino influences ease of integration and project scalability.
| PCB design kit | Board Sizes |
|---|---|
| 82 Piece Double Sided PCB Boar | 6x 20x80mm, 6x 30x70mm, 3x 40x60mm, 3x 50x70mm, 1x 70x90mm |
| PCB Design with EasyEDA: A Beg | — |
| ELEGOO 32 Pcs Double Sided PCB | Various sizes |
| Smraza 104pcs Double Sided PCB | 2*8cm, 3*7cm, 4*6cm, 5*7cm, 7*9cm |
| Rindion 32 Pcs PCB Board | — |
| 54 Pcs Double Sided PCB Perf B | — |
| 58Pcs 6 Sizes Double Sided PCB | 2x8cm, 3x7cm, 4x6cm, 5x7cm, 6x8cm, 7x9cm |
More Details on Our Top Picks

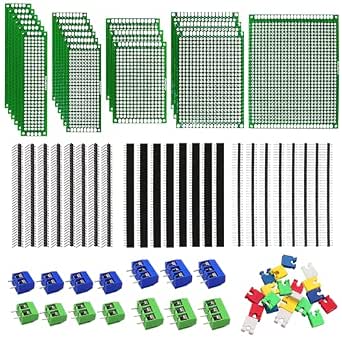

82 Piece Double Sided PCB Board Kit with 5 Sizes, 40-Pin 2.54mm Male & Female Header Connectors for DIY Electronics and Arduino Projects
This kit stands out for offering a comprehensive range of PCB sizes and components, making it ideal for a broad spectrum of DIY electronics and prototyping tasks. Compared with the ELEGOO 32 Pcs Double Sided PCB Board Prototype Kit, it provides more sizes and header options, which is valuable for complex or varied projects. The inclusion of high-quality FR4 material with tin-plated holes ensures reliable soldering, though the extensive variety can be overwhelming for simple, single-purpose projects. The lack of detailed instructions could pose a learning curve for beginners, but experienced users will appreciate the flexibility this kit offers. Overall, this kit suits hobbyists and engineers who need a versatile, all-in-one solution, despite the initial setup effort.
Pros:- Includes a wide range of sizes and components for diverse projects
- High-quality FR4 material with tin-plated holes for dependable soldering
- Various header connectors and terminal blocks for flexible connections
Cons:- Overwhelming for users who only need simple or few PCB sizes
- No included instructions or tutorials for assembly or use
Best for: Advanced hobbyists and professionals who work on multiple types of projects and need a broad component selection
Not ideal for: Beginners seeking a straightforward, easy-to-use starter kit with detailed instructions
- Number of Pieces:82
- Board Sizes:6x 20x80mm, 6x 30x70mm, 3x 40x60mm, 3x 50x70mm, 1x 70x90mm
- Material:FR4
- Board Thickness:1.6 mm
- Connector Type:IDC, Screw
- Pin Spacing:2.54mm
Our verdict“This kit is perfect for experienced makers who require flexibility and a broad selection for complex projects.”
PCB Design with EasyEDA: A Beginner’s Guide to Designing, Ordering, and Building Custom Circuit Boards
This book makes PCB design accessible for newcomers, guiding readers through the entire process from initial design to ordering fabricated boards. While it doesn’t provide technical specifications like the ELEGOO 32 Pcs Double Sided PCB Board Prototype Kit, it excels in demystifying the design workflow and helping users understand how to get their custom boards manufactured. It’s ideal for hobbyists and students who want to learn the fundamentals without getting bogged down by technical details. However, it doesn’t cover advanced techniques or specific hardware compatibility, which may limit those looking to expand their skillset beyond basics. For anyone starting out with PCB design and manufacturing, this guide offers a clear, practical foundation.
Pros:- Clear, step-by-step guidance suitable for newcomers
- Covers both design and ordering processes, reducing confusion
- Practical approach to understanding PCB creation from start to finish
Cons:- Lacks detailed technical or electrical specifications
- No coverage of advanced design techniques or complex manufacturing considerations
Best for: Beginners eager to learn PCB design principles and how to order custom boards using EasyEDA
Not ideal for: Experienced engineers or hobbyists seeking advanced PCB layout techniques or technical specifications
Our verdict“This book is ideal for beginners who want a straightforward, practical introduction to PCB design and ordering.”
ELEGOO 32 Pcs Double Sided PCB Board Prototype Kit for DIY Soldering
This set offers a practical selection of 32 double-sided PCB boards in various sizes, making it suitable for straightforward prototyping and DIY electronics projects. Compared with the larger, more comprehensive 82 Piece Double Sided PCB Board Kit, it is more focused and easier to handle for simple tasks. The durable FR4 material and pre-tinned holes streamline the soldering process, reducing frustration for beginners. However, the limited number of sizes and components means it’s less adaptable for complex or multi-stage projects. It’s a solid choice for hobbyists or students who need reliable, easy-to-solder prototype boards without extras, but less appropriate for those requiring extensive component options or detailed documentation.
Pros:- Pre-tinned holes simplify soldering for beginners
- Includes multiple sizes for flexible prototyping
- Durable FR4 construction ensures longevity
Cons:- Limited to basic prototyping, not suitable for complex designs
- No detailed compatibility information or instructions
Best for: Beginners and students working on basic soldering and prototyping tasks
Not ideal for: Experienced hobbyists or professionals needing a broader component library and advanced features
- Number of pieces:32
- Material:FR4 glass fiber
- Thickness:1.6mm
- Board sizes:Various sizes
- Mounting holes:4 per board
Our verdict“This kit suits newcomers who want dependable, easy-to-solder boards for simple DIY projects.”
Smraza 104pcs Double Sided PCB Board Kit for DIY Electronics and Arduino Projects
This kit provides a wide selection of 31 double-sided PCB boards along with numerous header connectors, terminal blocks, and jumper caps, making it well-suited for a variety of DIY electronics and Arduino projects. Unlike the ELEGOO 32 Pcs kit, it offers more PCB sizes and organized packaging, which appeals to users juggling multiple projects. The inclusion of a broad array of connectors and jumper caps enhances flexibility, though the lack of detailed instructions and specific component compatibility may challenge less experienced users. The environmentally friendly packaging is a plus for organization but doesn’t compensate for limited guidance. It’s a practical choice for hobbyists who want variety and organization, but not for those needing detailed technical support.
Pros:- Wide variety of PCB sizes for different projects
- Abundant header and jumper options for customization
- Compact, organized packaging facilitates storage
Cons:- Limited guidance on assembly or component compatibility
- Additional tools or knowledge needed for assembly
Best for: Hobbyists managing multiple projects and needing versatile PCB sizes and organized storage
Not ideal for: Beginners without prior soldering experience or those requiring detailed assembly instructions
- Number of PCB Boards:31
- Board Sizes:2*8cm, 3*7cm, 4*6cm, 5*7cm, 7*9cm
- Header Connectors:40 pin male, right-angle male, female
- Screw Terminal Blocks:5.08mm pitch, 300V, 16A
- Jumper Caps:6 colors, 5 pieces per color
Our verdict“This kit is ideal for hobbyists who value variety and organization over detailed technical support.”
Rindion 32 Pcs PCB Board, Green Double Sided Circuit Boards for DIY Electronics Projects
This set offers 32 double-sided PCB boards in a variety of sizes, crafted from durable FR-4 material with standard spacing, making it suitable for general DIY electronics. Compared with the ELEGOO 32 Pcs Kit, it emphasizes durability and versatility for various circuit applications at a lower cost. The double-sided design and standard spacing enhance the usability across multiple projects, though the lack of detailed electrical or component specifications limits its application scope. It’s a reliable, budget-friendly option for hobbyists working on simple circuits, but less suited for advanced or highly specific projects needing detailed technical data.
Pros:- Multiple sizes suitable for various applications
- High-quality FR-4 material enhances durability
- Double-sided design increases versatility
Cons:- Limited technical specifications or electrical details
- No specific component compatibility info
Best for: Hobbyists seeking affordable, durable boards for a variety of basic DIY projects
Not ideal for: Users needing detailed electrical specifications or complex project support
- Package Includes:32 pcs in 5 sizes
- Sizes:2×8 cm, 3×7 cm, 4×6 cm, 5×7 cm, 7×9 cm
- Material:FR-4
- Thickness:1.6 mm
- Spacing:0.1 inch
- Mounting holes:4 per board
Our verdict“This set provides durable, versatile boards at a budget-friendly price for simple DIY projects.”
54 Pcs Double Sided PCB Perf Board Kit in 5 Sizes Compatible with Arduino DIY Soldering Circuit Protoboard
This set stands out for its variety of five different sizes of double-sided perf boards, making it highly adaptable for a wide range of DIY electronics and Arduino projects. Compared with the ELEGOO 32 Pcs Double Sided PCB Board Prototype Kit, it offers more size options, which can be beneficial for customizing circuit layouts. However, it lacks detailed assembly instructions, which might challenge beginners. The inclusion of header pins, screw terminal blocks, and jumper caps provides a comprehensive toolkit for prototyping, but the bulk packaging could be less convenient for those working on small or individual projects. The double-sided design supports complex circuit development without requiring separate layers or additional boards.
Pros:- Includes multiple sizes of perf boards for versatile prototyping
- Comprehensive set with header pins, terminal blocks, and jumper caps
- Double-sided boards support complex circuit designs
Cons:- No detailed instructions included for assembly
- Bulk packaging may be less suitable for small projects
Best for: Beginners and hobbyists who need a variety of board sizes and a complete set for small to medium DIY projects
Not ideal for: Advanced professionals working on large, complex circuits requiring specialized boards or detailed guidance
- Number of Sizes:5
- Board Dimensions:20x80mm, 30x70mm, 40x60mm, 50x70mm, 70x90mm
- Header Pins:1×40 pin, straight and right-angle, female
- Screw Terminal Blocks:2-pin and 3-pin
- Jumper Caps:20 pcs
- Compatibility:Arduino
Our verdict“This kit is ideal for hobbyists seeking a flexible, all-in-one solution for a variety of Arduino and small prototyping tasks.”
58Pcs 6 Sizes Double Sided PCB Circuit Prototype Solder Board Kit with 2.54mm 40pin Male Female Header Connector and 5mm KF301 Screw Terminal Block for DIY Soldering
This kit offers six sizes of double-sided prototype boards, providing a broader selection compared to the 54 Pcs Set. Its inclusion of 40-pin male and female headers, along with screw terminal blocks, makes it well-suited for more complex or larger-scale projects requiring detailed connections. The variety of sizes and hole configurations allow for precise customization, which can be advantageous over simpler kits. However, buyers need to verify size and pin compatibility beforehand, as the specifications are quite specific. The board’s robust construction with a 1.6mm thickness and rated voltage of 300V makes it reliable for more demanding circuits, especially when working with high current or voltage levels.
Pros:- Includes multiple sizes suitable for various project complexities
- Comprehensive set with headers and screw terminal blocks
- Designed for detailed, high-quality prototyping with reliable specs
Cons:- Requires careful confirmation of size and pin configurations before purchase
- More complex setup might be overwhelming for complete beginners
Best for: Intermediate to advanced DIYers who need a comprehensive range of sizes and detailed connectivity options for complex prototype development
Not ideal for: Absolute beginners or those working on very small or simple projects, due to the need for precise configuration and verification
- Number of PCB Boards:6 sizes
- Board Sizes:2x8cm, 3x7cm, 4x6cm, 5x7cm, 6x8cm, 7x9cm
- Hole Diameter:1mm
- Hole Pitch:2.54mm
- Board Thickness:1.6mm
- Rated Voltage:300V
Our verdict“This kit is best suited for makers who need a wide range of board sizes and detailed connectivity options for advanced DIY projects.”
How We Picked
These PCB design kits were evaluated based on several key factors: the variety of sizes and components included, build quality, ease of use for beginners, flexibility for complex projects, and overall value. We prioritized kits that balance comprehensive features with user-friendly design, ensuring they are suitable for both hobbyists and more experienced makers. The ranking also considers customer reviews and reliability, as well as how well each kit supports different project types, from simple prototypes to advanced DIY electronics. Our goal was to highlight options that stand out in versatility, quality, and affordability, helping buyers find the best match for their specific needs.Factors to Consider When Choosing Best PCB Design Kits
Choosing the right PCB design kit involves more than just looking at the number of pieces. Consider your experience level, project complexity, and future expansion plans. A well-chosen kit can streamline your workflow and improve project outcomes, but selecting the wrong one may lead to frustration or limited flexibility. Here are some important factors to keep in mind when making your decision.Size and Component Variety
Look for kits that offer a range of sizes and types of boards to match your project scope. Kits with varied components allow for greater flexibility, especially if you plan to build multiple types of circuits. However, a larger set might be more overwhelming for beginners, so choose one that aligns with your current skills and future needs.
Ease of Use and Documentation
Clear instructions, tutorials, and straightforward assembly processes are essential for beginners. Kits that include detailed guides reduce the learning curve and help prevent common mistakes. For more advanced users, focus on the quality of the components and the potential for customization.
Material Quality and Durability
Investing in kits with high-quality materials ensures your projects are reliable and long-lasting. Cheaper components may save money upfront but can lead to issues like poor solder joints or brittle boards. Balance cost with quality, especially if your projects will be used frequently or in critical applications.
Compatibility and Expandability
Verify that the kit supports your preferred microcontrollers or sensors, such as Arduino or Raspberry Pi. Kits with headers and connectors compatible with common modules simplify integration. Also, consider whether the kit allows for future upgrades or additional components to grow with your skills.
Price and Value
While budget is always a concern, extremely cheap kits often compromise on quality or versatility. Look for a balance between cost and features, ensuring the kit provides enough components for your projects without unnecessary extras. Sometimes, investing a bit more upfront results in a more useful and durable set.
Frequently Asked Questions
Is a larger PCB kit always better for beginners?
Not necessarily. While larger kits offer more options and components, they can be overwhelming for newcomers. Beginners benefit more from kits that focus on essential sizes and include clear instructions. As skills grow, expanding to larger, more comprehensive kits becomes easier and more manageable.
Should I prioritize cost or quality when choosing a PCB kit?
Prioritizing quality usually leads to better project results and longer-lasting boards. Cheaper kits might seem attractive but often lack durability or precise manufacturing, which can cause problems in complex or high-frequency projects. Investing a little more often pays off by providing more reliable components and a better overall experience.
Can I use these kits for professional or commercial projects?
Most of these kits are designed for hobbyist and educational use, so they might not meet the strict standards required for commercial products. For professional applications, consider kits with industrial-grade materials and certifications. However, they are excellent for prototyping and learning before scaling up production.
Are beginner kits suitable for advanced projects later on?
Many beginner kits provide a solid foundation, especially those with a variety of sizes and components. However, as projects grow in complexity, you may need to supplement these kits with additional parts or upgrade to more advanced sets. Starting with a flexible, expandable kit helps mitigate this issue.
What is the most important feature to look for in a PCB design kit?
Compatibility with your current tools and future project plans is often the most critical. Ensure the kit includes the types of boards, headers, and connectors you need. Also, consider the quality of the components and whether the kit offers enough flexibility to support both simple and complex projects as your skills improve.
Conclusion
For those new to electronics or PCB design, the PCB Design with EasyEDA guide paired with beginner-friendly kits provides a smooth learning curve. Hobbyists who want a versatile set for multiple projects will find the 82 Piece Double Sided PCB Board Kit offers excellent value and variety. If you’re seeking a more professional-grade experience, the higher-quality, larger kits like the Smraza 104pcs Double Sided PCB Board Kit deliver greater durability and expandability. Budget-conscious buyers should focus on kits that balance quality and cost, while experienced makers might prefer premium options with advanced features. Ultimately, your choice depends on your current skill level, project scope, and future ambitions in electronics design.
